Case 5: 11 implants in one surgical implant procedure

Patient's general condition: the patient was a male, 65 years old at the time, suffering from periodontitis.

Detailed graphic material information

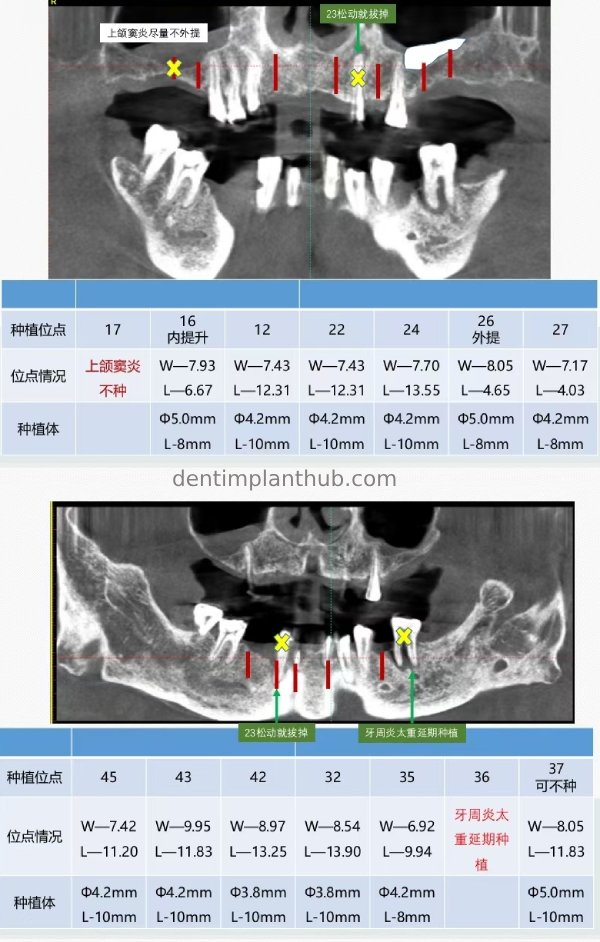

Status of individual loci to be planted and integration options

17, not implanted first because of maxillary sinus inflammation not suitable for maxillary sinus lateral wall opening surgery;

16, insufficient bone height, need to do maxillary sinus internal elevation;

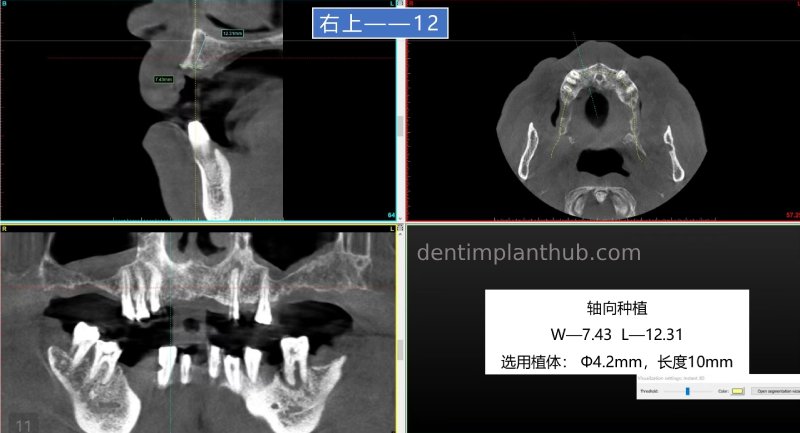

12, 22 normal implantation;

23, intraoperative extraction;

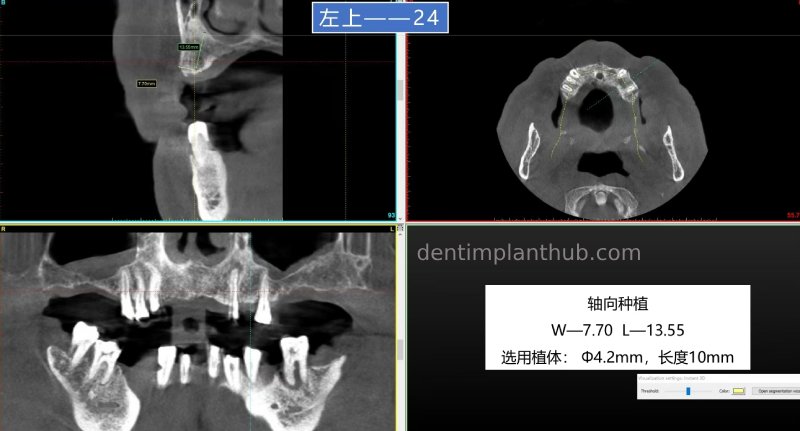

24, normal implantation, subsequent restoration can be done together with 12, 22 for a consecutive crown;

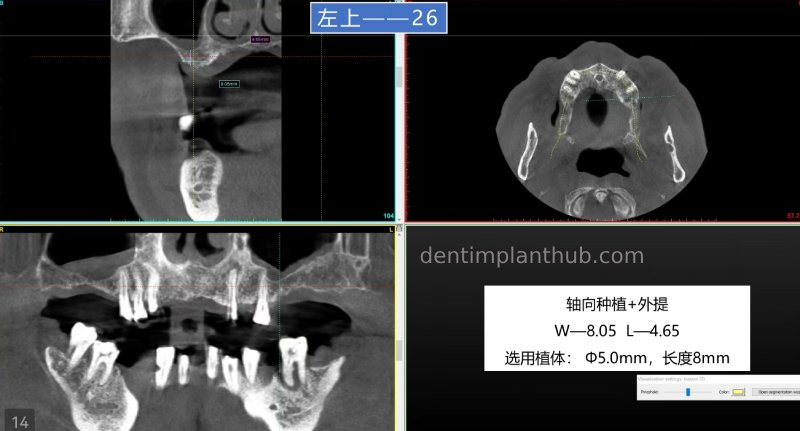

26, 27, together with the maxillary sinus lateral wall opening surgery;

45, normal implantation;

43, ready to be extracted, ready to be implanted. Follow-up restoration and 45 together with continuous crowns;

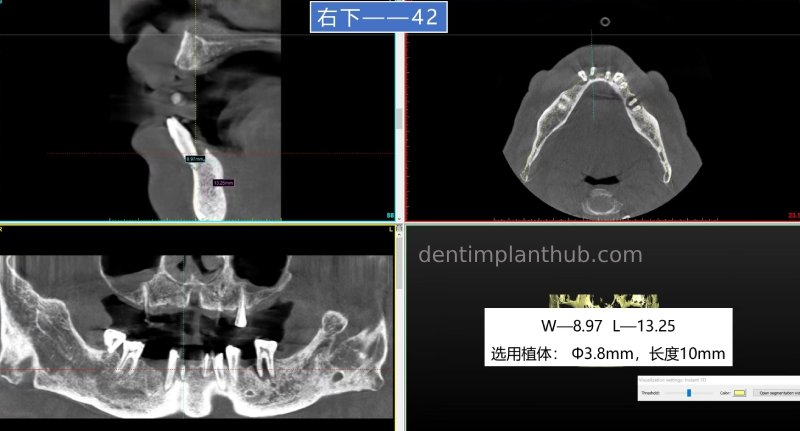

42, 32, immediate extraction and implantation, follow-up restoration together with continuous crowns;

35, normal implantation;

36, periodontitis is too severe, extraction first, and then implantation when the recovery is good;

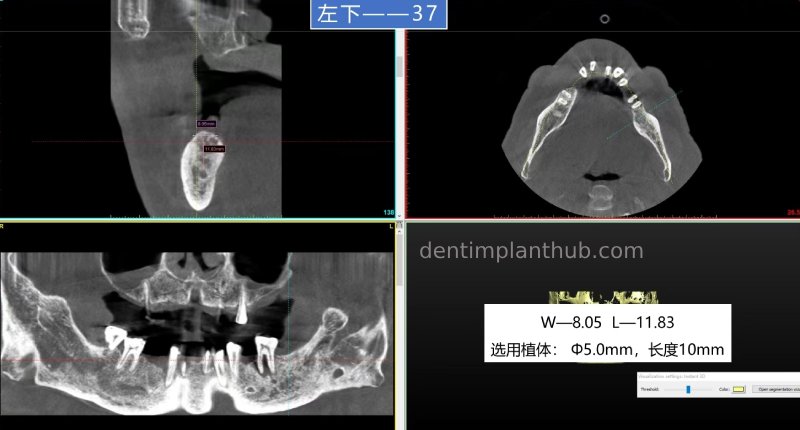

37, can be done without implantation;

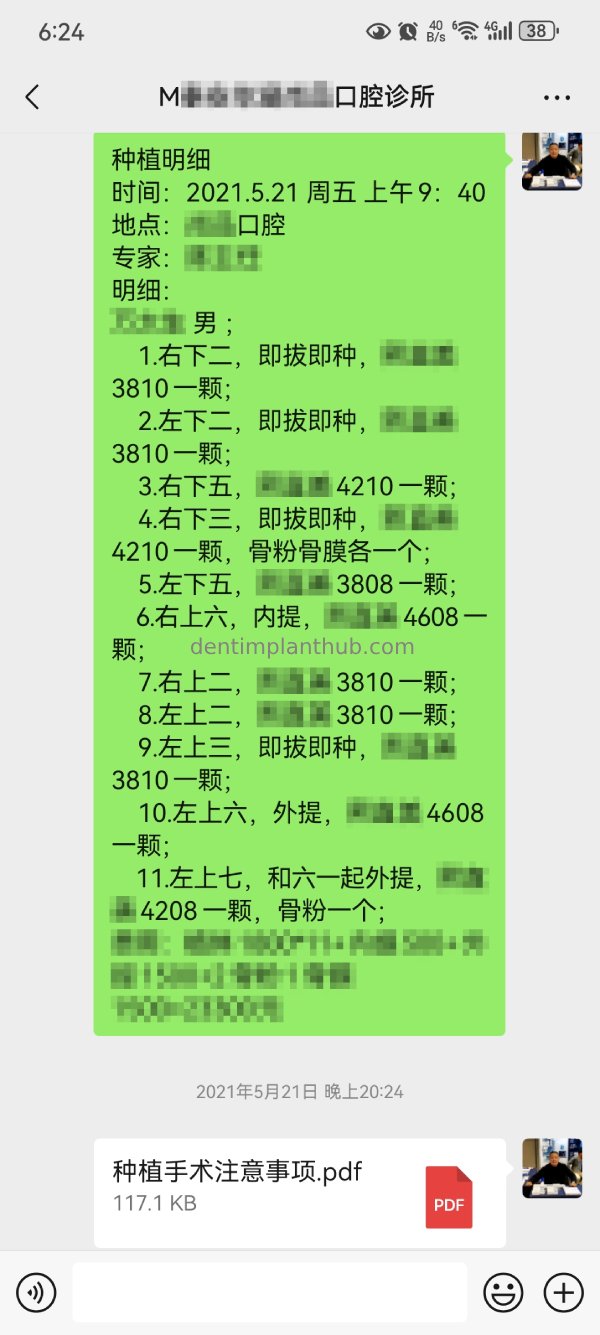

Dental Implant Surgery Breakdown for May 21, 2021

Dental Implant Surgery is Friday, May 21, 2021 at 9:40 a.m.

42, ready-to-use implant, implant model 3810;

32, ready-to-use implant, implant model 3810;

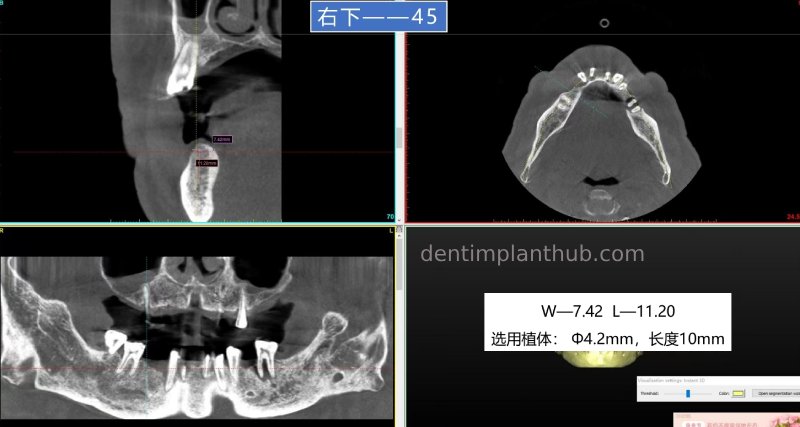

45, implant model 4210;

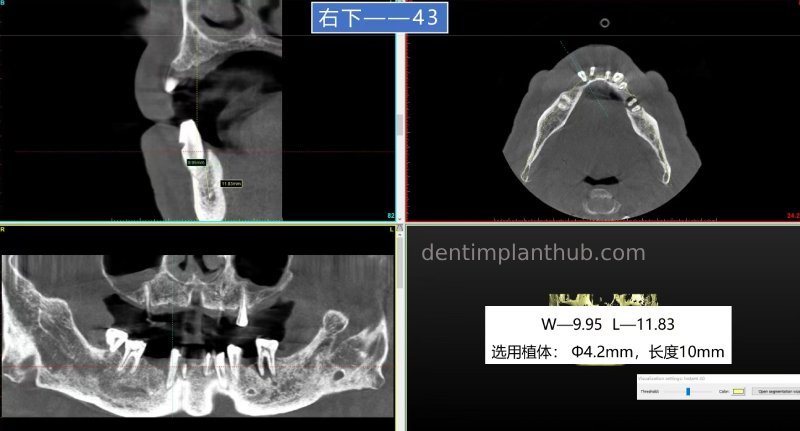

43, ready-to-use implant, implant model 4210, with 0.25g of bone meal and one 1.5*2 oral biofilm;

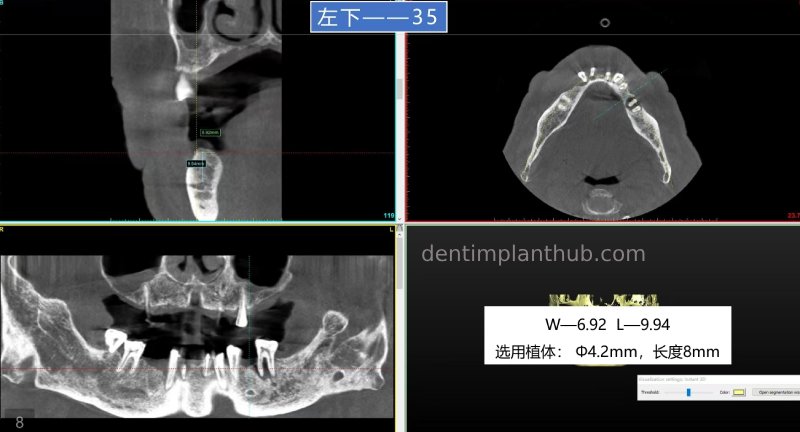

35, implant model 3808;

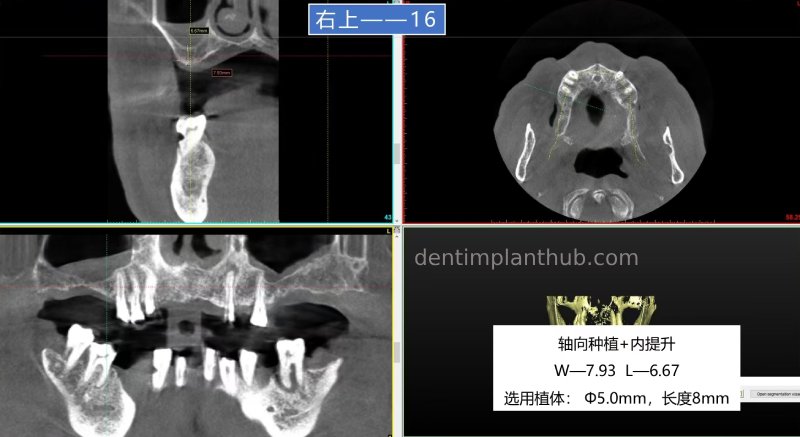

16, implant model 4608, with an intra maxillary sinus elevation;

12, implant model 3810;

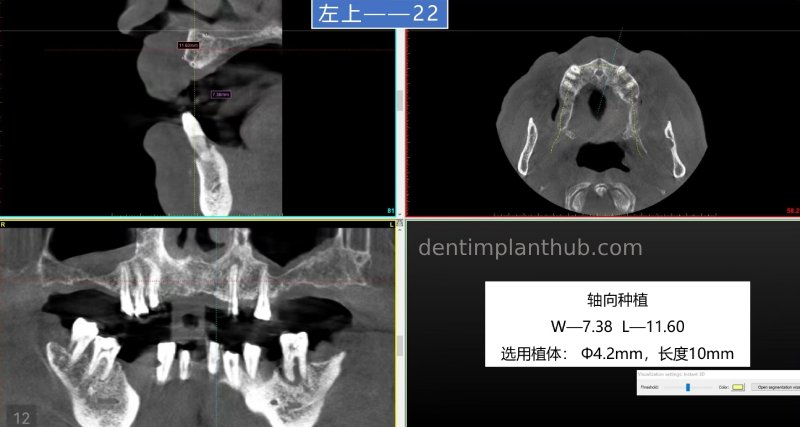

22, implant model 3810;

23, immediate extraction with implant model 3810;

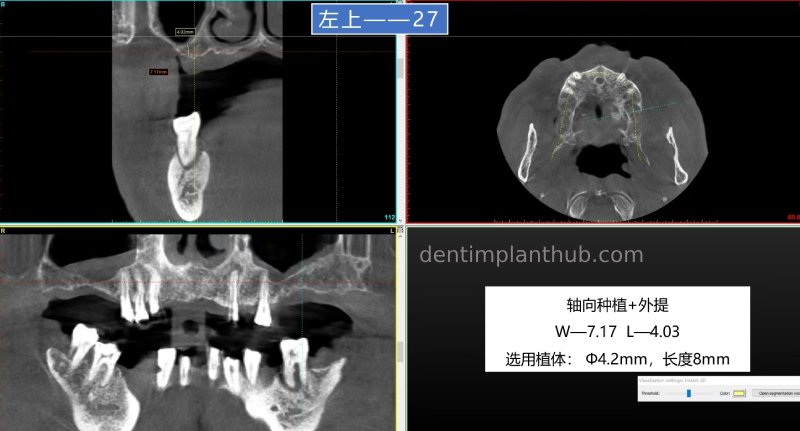

26, 27, together with maxillary sinus lateral wall openings, implant models 4608 and 4208, respectively, with 0.25 g of bone meal and 1 sheet of 1.5*2 oral biofilm;

26,27 Photographs of the lateral wall of the maxillary sinus performed together

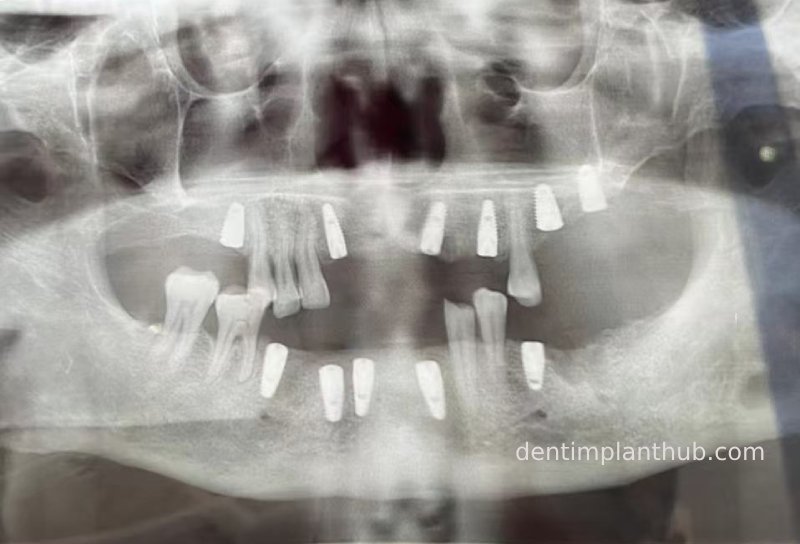

Review panoramic photo from December 24, 2021
