Case 2: 21~23 bone split implantation of two implants

The patient's left maxillary teeth 1, 2 and 3 were dislodged due to trauma 4 months prior to surgery, and at the same time, due to a fracture of the alveolar eminence, the bone width was only 3 mm, and bone splitting horizontal bone augmentation surgery was performed

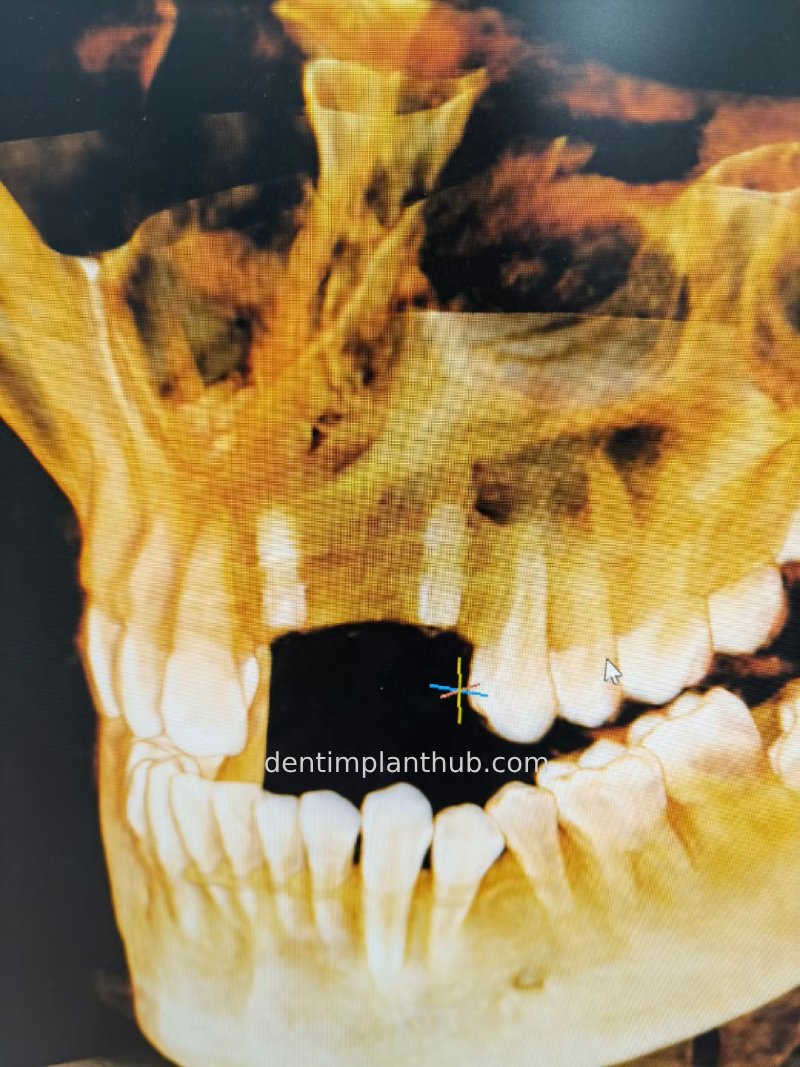

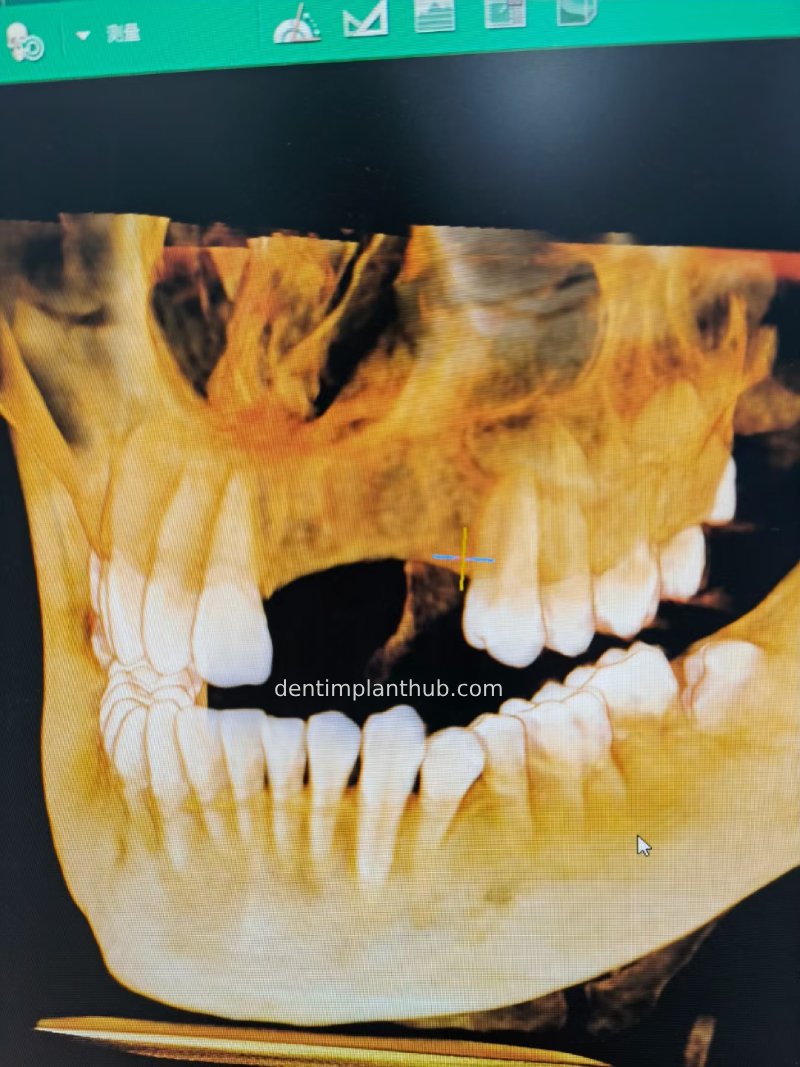

Three-dimensional CT view before surgery

Sawing along the middle of the alveolar bone with a piece disc drill

Splitting the alveolar bone with a bone chisel

Breaking the alveolar bone with a bone spreader

Placement of two implants

Implanted bone meal

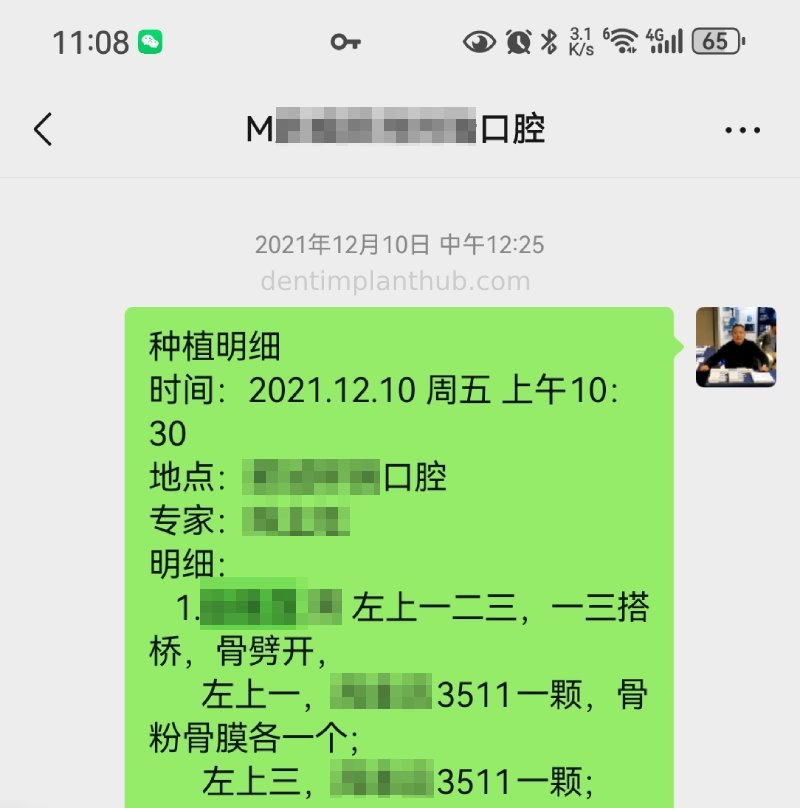

planting details

The surgery will take place on Friday 10th December 2021 at 10:30am

Implant breakdown:

21 and 23 bypassed, bone splitting surgery, 0.25g bone meal and 1.5*2 periosteum shared with 23

21, implant type 3511;

23, implant type 3511;

Three-dimensional CT images after surgery

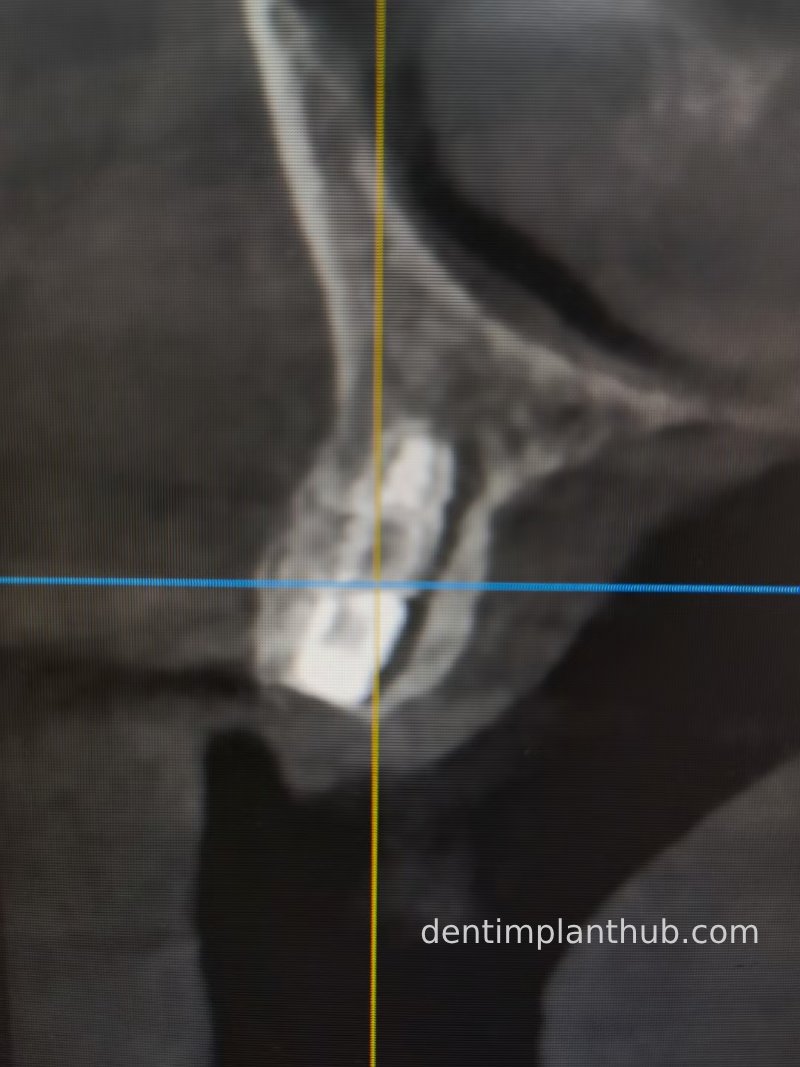

21 Postoperative CT screenshot

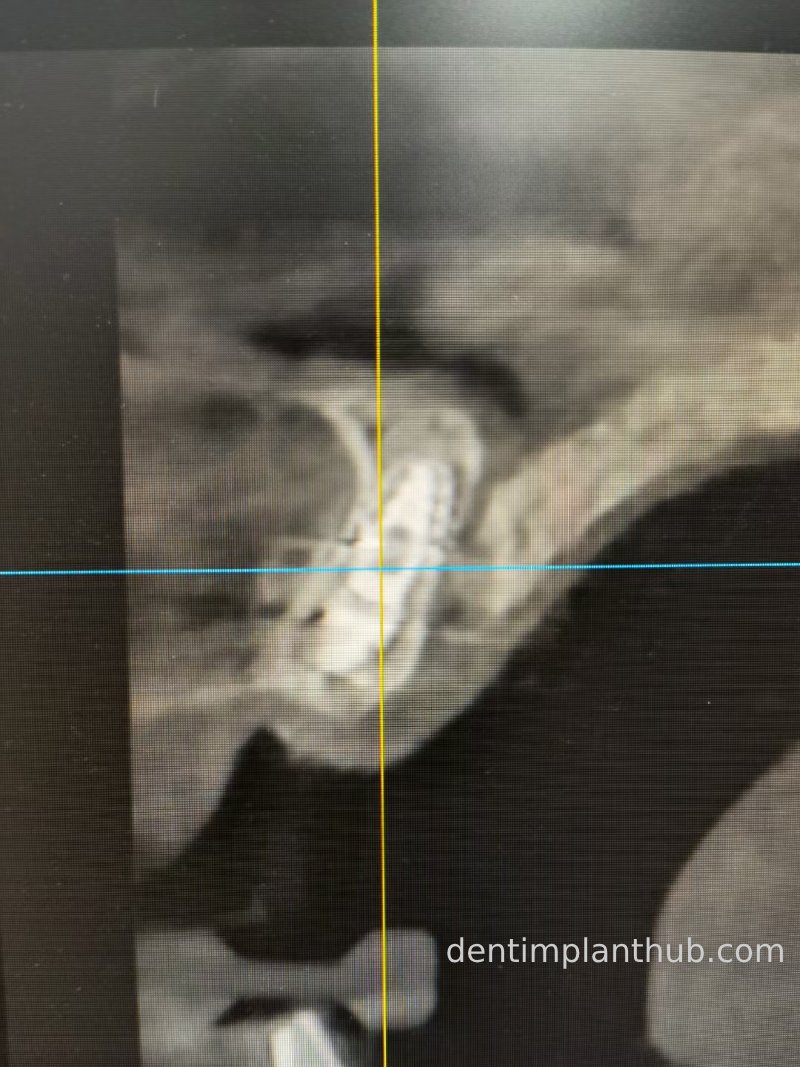

23 Postoperative CT screenshot
